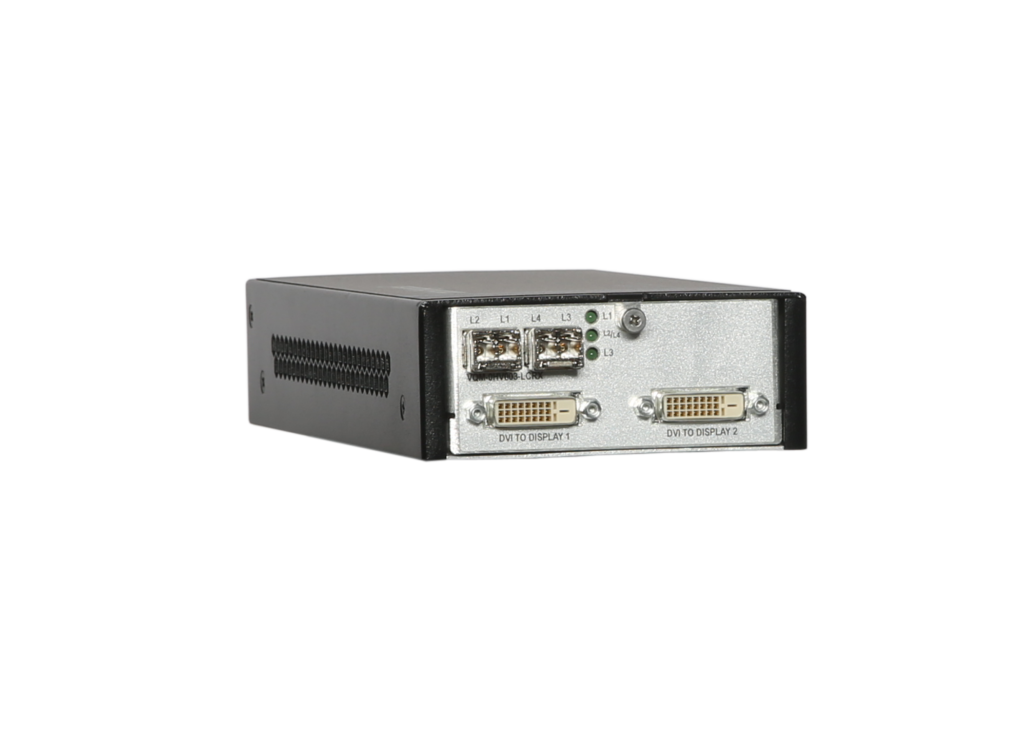

Q – 1300 Chassis
- Interface module options:
- One single-link DVI display
- One single-link DVI display, audio and serial
- One single-link DVI display, audio and network
- One dual-link DVI display
- One dual-link DVI display, audio and serial
- One dual-link DVI display, audio and network
- One RGB or DVI display, audio and serial
- Two SD/HD signals or one 3G/dual-link signal and RS-422
- MRTS technology 6.25Gbps allows for full frame rate transmission of uncompressed DVI
- All models are available with standard LC type fiber connectors
- Supported SDI Standards – SMPTE 424M, 292M, 259M, 372M and 425 level A and B compliant
- Single-mode or multi-mode fiber options extend signals up to:
- – 350 meters using multi-mode fiber type OM2
- – 750 meters using multi-mode fiber type OM3
- – 1000 meters using multi-mode fiber type OM4
- – 40 kilometers (24 miles) using single-mode fiber
- Stereo emitter for active 3D applications
- Simple plug and play
- A dry contact annunciator provides an alarm warning in the event of a power failure or a unit overheating
- Fully compatible with Thinklogical’s Velocitykvm, Velocitydvi and SDI Xtreme 3G+ Extension Systems
- Fully compatible with Thinklogical’s VX Routers
Overview
Thinklogical’s modular systems allow users to create a flexible, custom, space-saving and easily scalable product. For enhanced resiliency, each extender module is hot-swappable, complete with hot-swappable optical modules. As a system design evolves easily convert a unit from multi-mode to single mode or swap the module to easily reconfigure a system to meet new requirements. Modules include fans to keep the system cool and emit virtually no detectable sound to interfere with the local user.
The compact design of the ¼RU Q-1300 Chassis is ideal for use on or mounted below the desktop, or for wall mounting applications. The modular design is configurable with a single Q-Series transmitter or receiver module.
Specifications
Operating Temp. 0°-50°C; (32°-122°F)
Humidity 5-95% RH, non-condensing
Dimensions:
Height: 1RU – 1.72” (43.69mm)
Depth: 11.44” ( 290.64mm)
Width (w/o mounting hardware): 4.31” (109.50mm)
(Tolerance: ± .039″; .100cm)
Weight: 1lbs (0.45kg) per unit
Shipping Weight: 9lbs (4.08kg) pair
Power Consumption < 5 watts (10 Watts loaded)
Supply Voltage 100-240 VAC, 47-63Hz Universal AC power supply
Compliance Approvals for US, Canada, and European Union
Warranty 12 months from date of shipment – Extended warranties available
