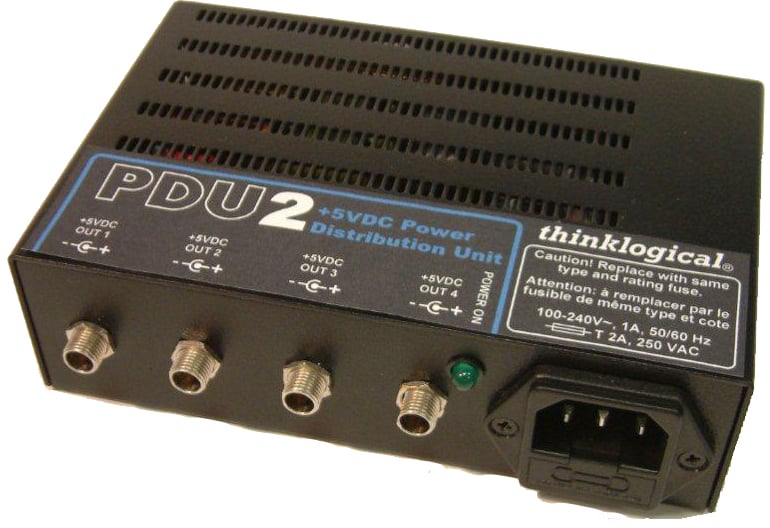

PDU 2 – Power Distribution Unit 2

PDU 2 – Power Distribution Unit 2

Provides power for up to four devices
+5 VDC
desktop design
includes four DC power cables
The power disconnect device is the AC line cord.

Overview

Power for Velocitydvi, Camera Fiber-Link Extenders, and USB 2.0 Extenders

The Thinklogical Power Distribution Unit 2 (PDU2) is a +5 V DC power supply that provides power for up to four devices. The PDU is designed as a desktop device.

For use with the

Velocitydvi System-3, -3 A/V+, -3 A/N+
Velocitydvi System-6, -6 A/V+, -6 A/N+
Camera Fiber-Link 3000, 4000, 5000, 6000
USB 2.0 Extender

Specifications

Operating Temperature 0°–50° C (32°–122° F)

Humidity 5-95% RH, non-condensing

Dimensions:

height: 1.625 inches (41.275 mm)

depth:4.25 inches (10.795 mm)

width: 5.625 inches (142.875 mm)

(tolerance: ± .039 inches; 1 mm)

Weight:

Weight (per unit): 0.5 lb (0.4 kg)

Shipping Weight: 5 lbs (2.268 kg)

Output Voltage +5.0 VDC

Input Voltage 1 Amp total universal input 100–240 VAC, 50/60 Hz

Compliance Approvals for US, Canada, and European Union

Warranty 12 months from date of shipment – Extended warranties available
