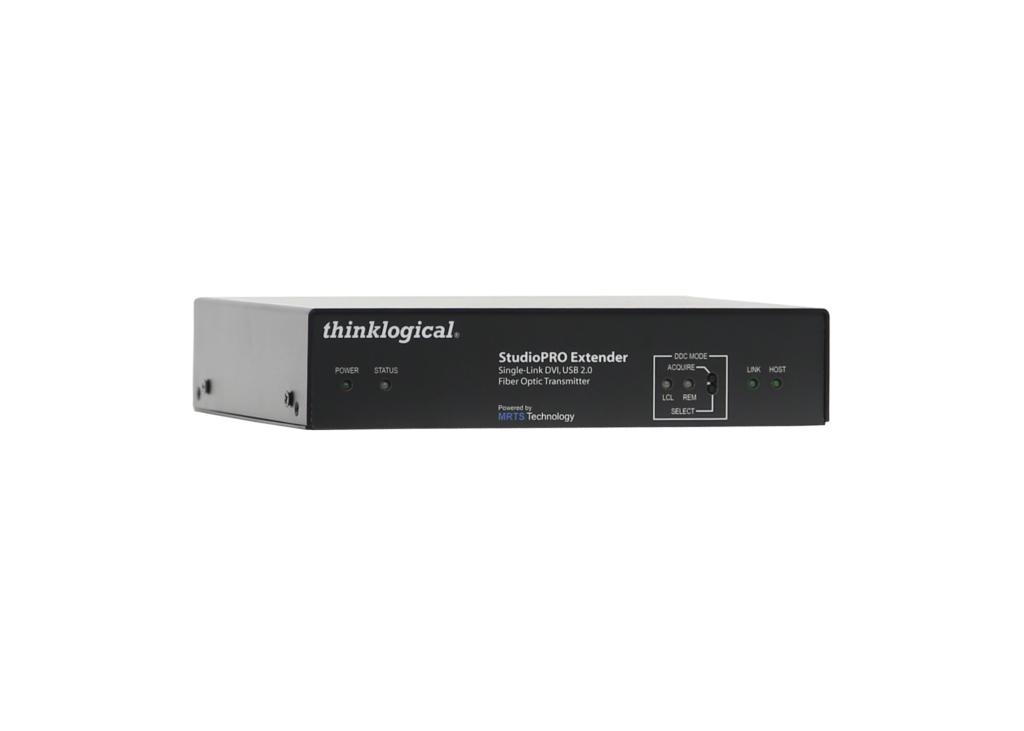

StudioPRO Single Link DVI Extender

Specifications

• Video Resolution: DVI-D, all single-link DVI resolutions (maximum 165MHz pixel clock)
• Optical Cable: Two (2) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
• Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
• Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
• Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
• Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
• Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
• Compliance: Approvals for United States of America, Canada, and European Union
• Warranty: One year ∙ Extended warranties available for purchase
• Mounting Brackets: Surface Mounting Brackets Included
• Power Consumption: 15 Watts
• Supply Voltage: +5V DC, 4A, AC/DC Adapter Universal Input 100-240VAC, 50/60Hz
• Weight: 1.50lbs (0.68kg)

Dimensions

• Rack Size: EIA 19”; To rack mount use (2) ENC-000205-R (not included)
• Height x Width x Depth: 1.72” (43.74mm) x 9.04” (229.62mm) with mounting brackets x 7.39” (187.58mm)
• Tolerance: ± 0.039” (1.00mm)

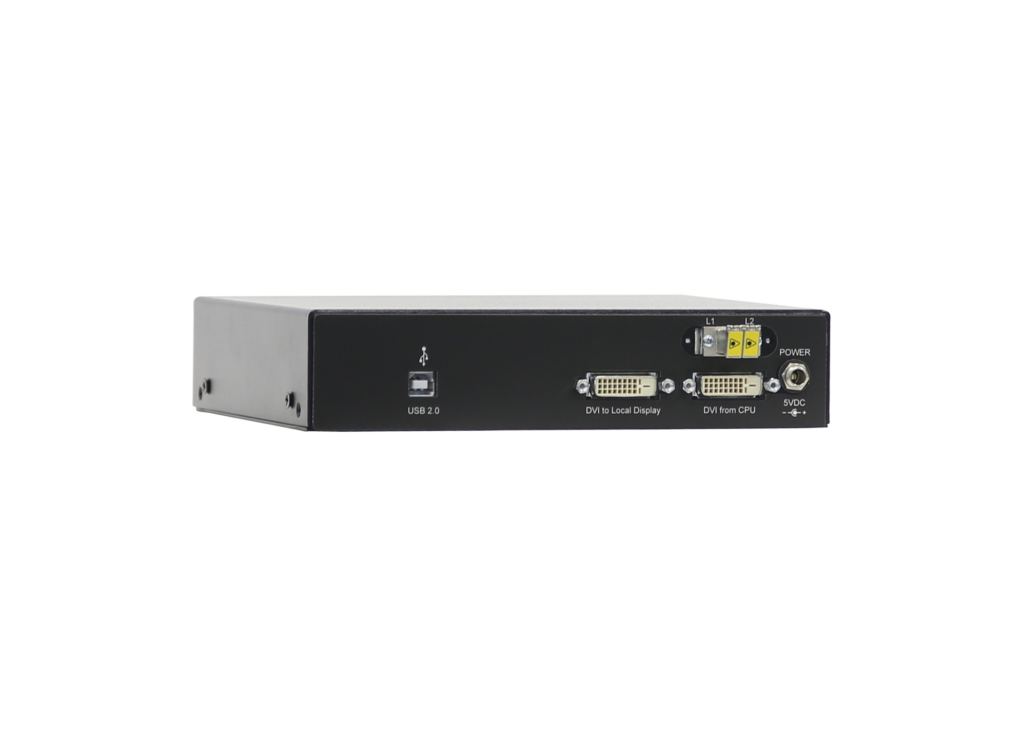

Connectors

• • Video: DVI-D (2)
  • USB 2.0 (480 Mbps): TX: USB B (1); RX: USB A (4)
  • Fiber Connectors: LC, SC or ST (1)

*Cables Included

Transmitter:

• (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R)
• (1) DVI-D Single-Link Male to Male, 2 Meters (CBL000009-002MR)
• (1) USB A-B, 1.8 Meters (CBL000015-006FR)

Receiver:

• (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R)
