Overview

The VelocityUAP extension systems are designed to support USB HID, USB 2.0 (480Mbps, four outputs included on receiver), full duplex stereo audio and PS/2.

Analog Audio, PS/2, USB HID & USB 2.0 Extender.

Specifications

Optical Cable: Two (2) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
Compliance: Approvals for United States of America, Canada, and European Union
Warranty: One year ∙ Extended warranties available for purchase
Mounting Brackets: See Modular Chassis Specifications
Power Consumption: 10 Watts
Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz
Weight: 0.50lb (0.23kg)

Dimensions

Rack Size: See Modular Chassis Specifications
Height x Width x Depth: 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm)
Tolerance: ± 0.039” (1.00mm)

Connectors

USB 2.0 (UAP): TX: USB B (1); RX: USB A (4)
USB 2.0 (U1): TX: USB B (1); RX: USB A (1)
USB HID (UAP Only) TX: USB B (1); RX: USB A (4)
Audio MIC/LINE (UAP Only) 3.5mm Jack (2)
PS/2 Keyboard/Mouse (UAP Only) TX: DB9 Female (1)
Software Updates (UAP Only) RX: USB B (1)
Fiber Connectors LC (1)

Cables Included
Transmitter:

(1) Power Cable [See Modular Chassis Specifications]
UAP: (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR); (1) USB A-B, 1.8 Meters (CBL000015-006FR)
U1: (1) USB A-B, 1.8 Meters (CBL000015-006FR)

Receiver:

(1) Power Cable [See Modular Chassis Specifications]

Contact Thinklogical for additional specifications.

Resources

Data Sheet

How To Buy

Part Numbers

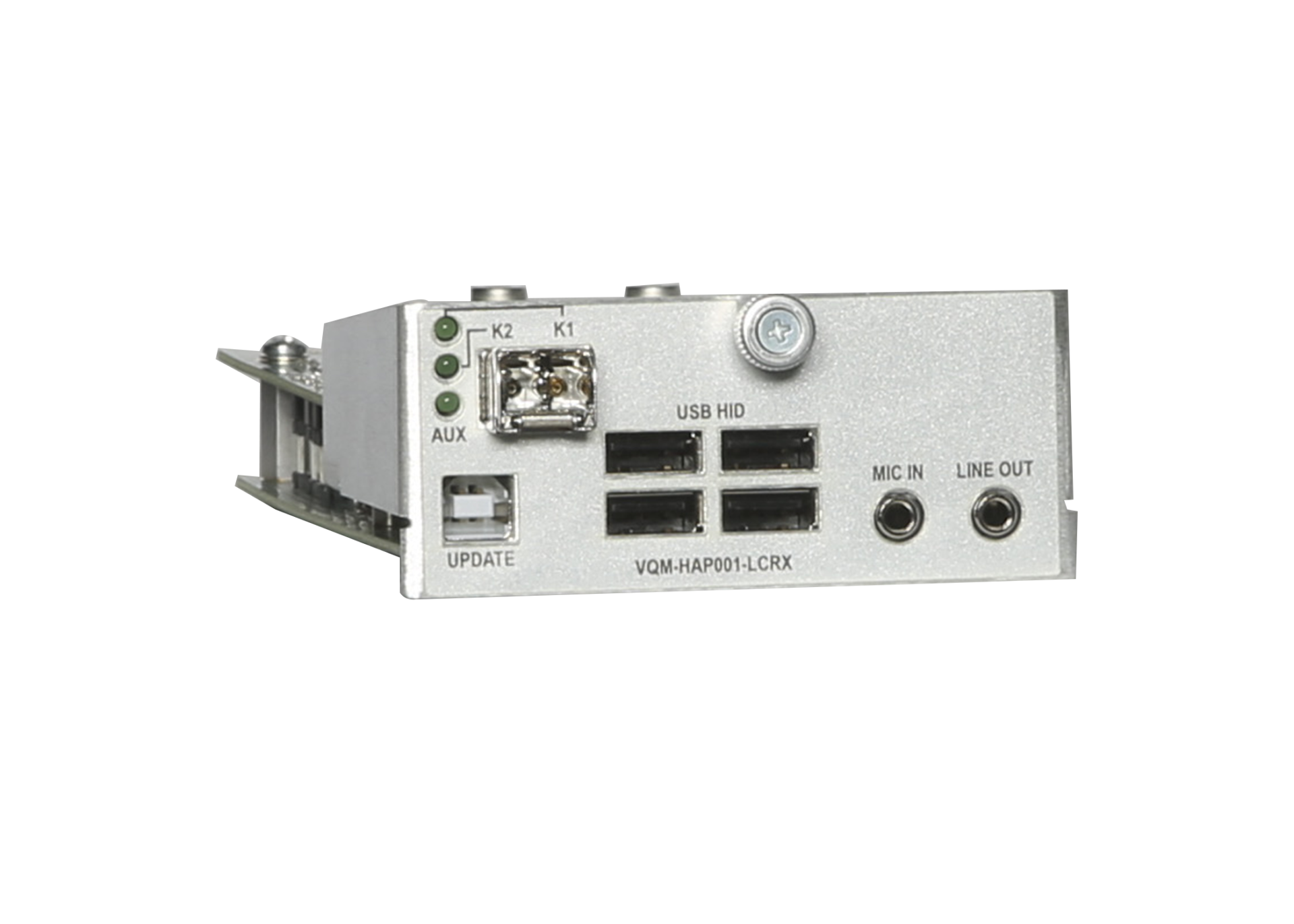

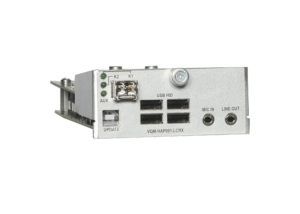

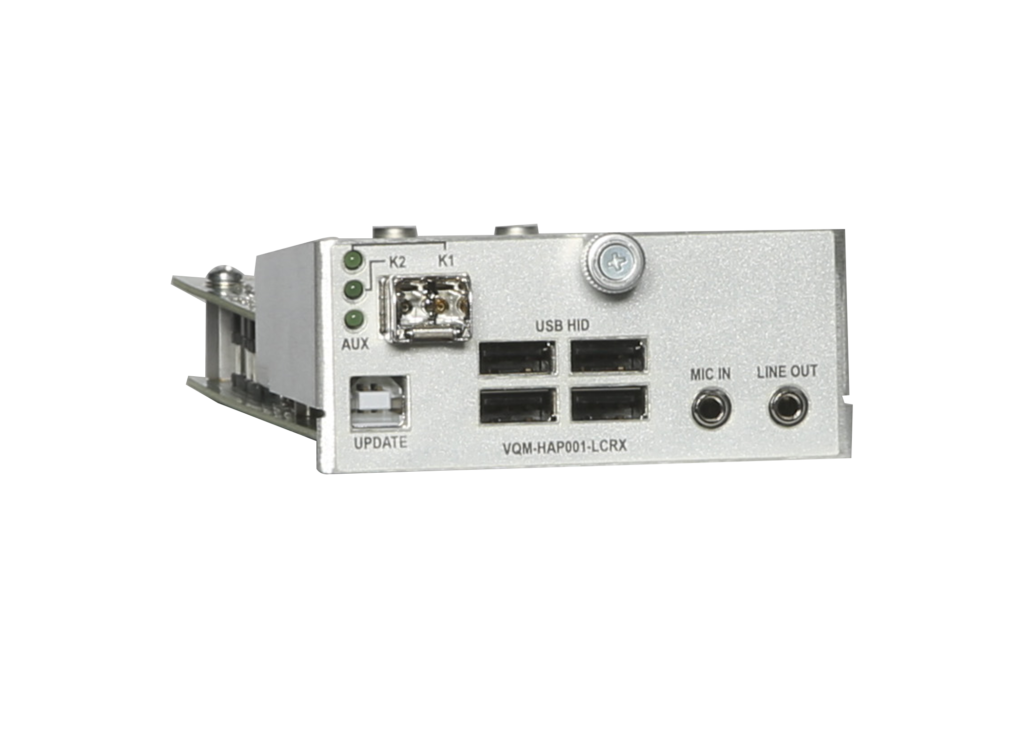

VQM-HAP001-LCRX Velocity Q-Series Audio & Peripheral Extender Receiver Module, HID, Audio, PS/2, LC

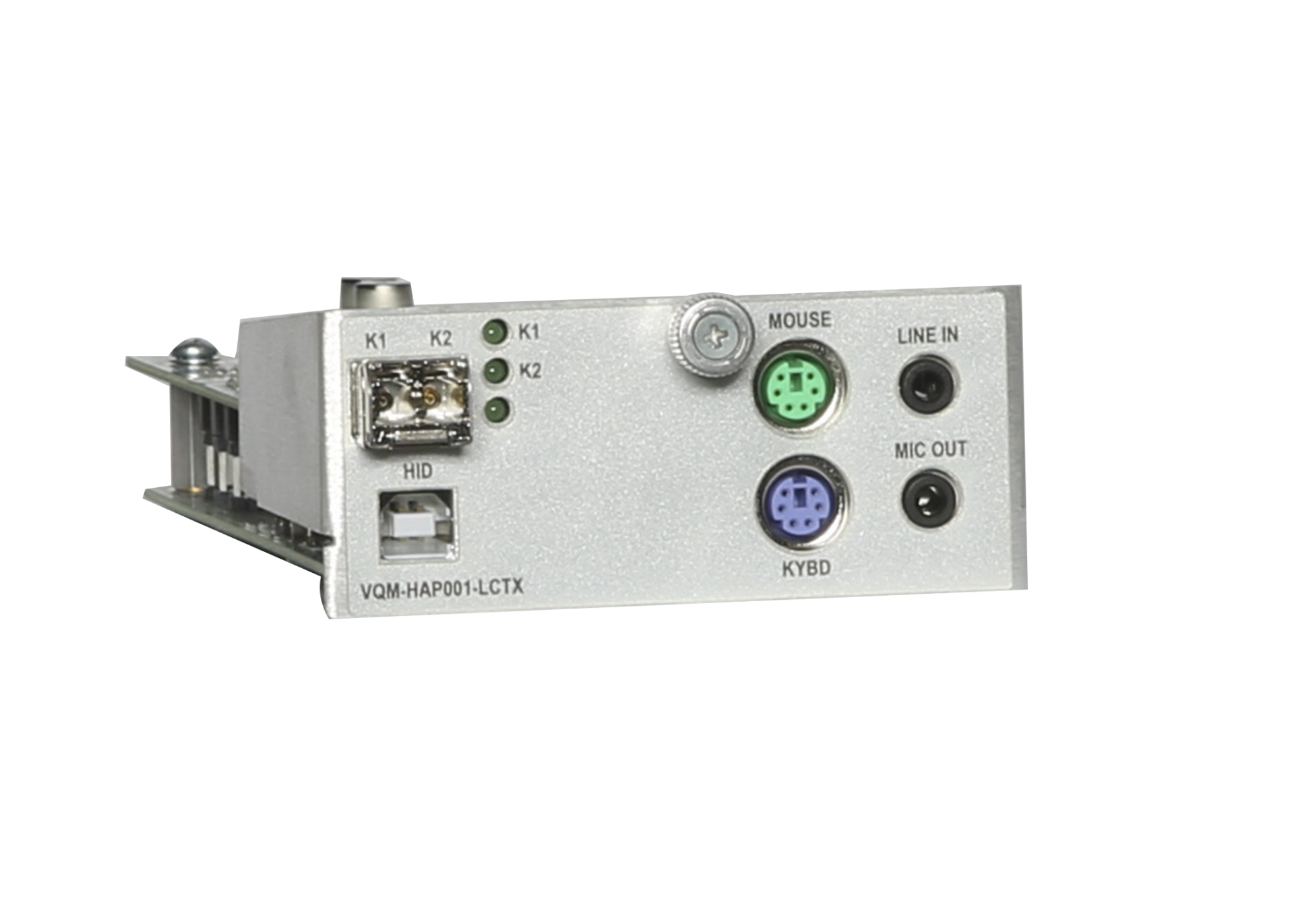

VQM-HAP001-LCTX Velocity Q-Series Audio & Peripheral Extender Transmitter Module, HID, Audio, PS/2, LCQM-HAP001-LCTX

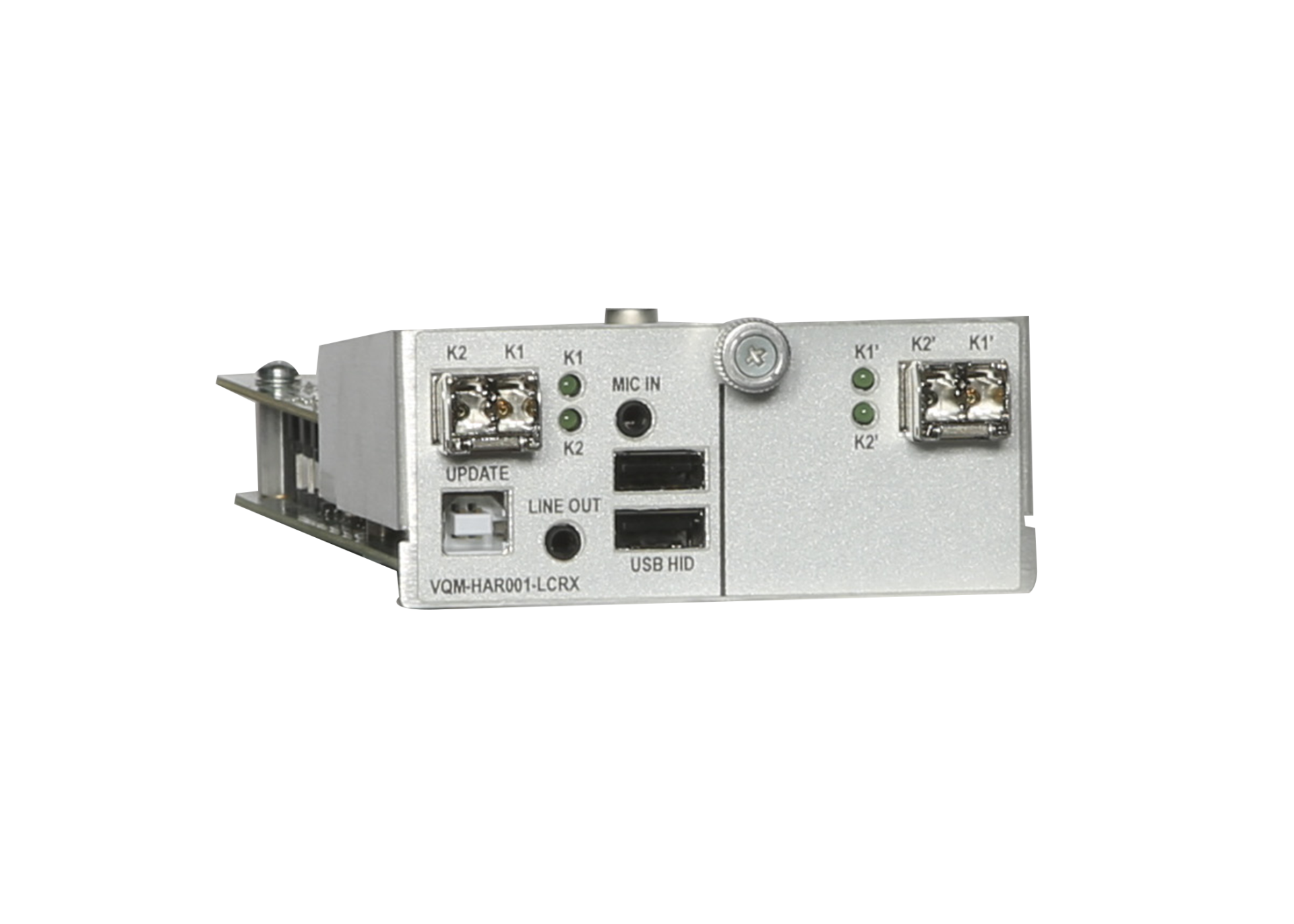

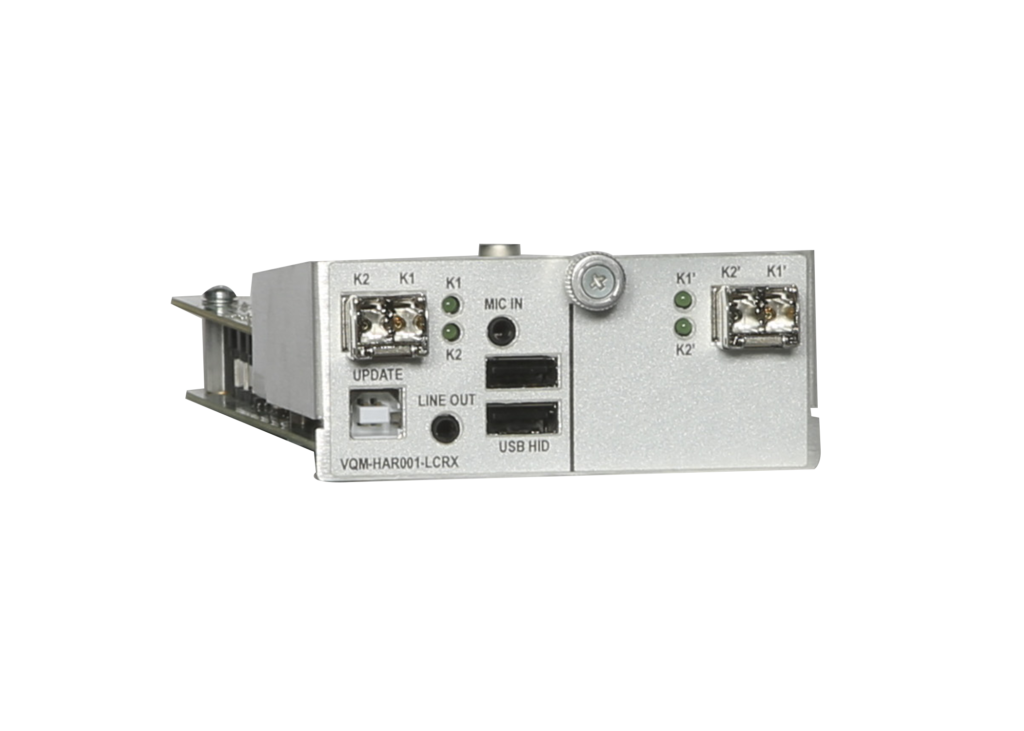

VQM-HAR001-LCRX Velocity Q-Series Audio & Peripheral Extender Receiver Module, HID, Audio, Redundant Data Path, LC

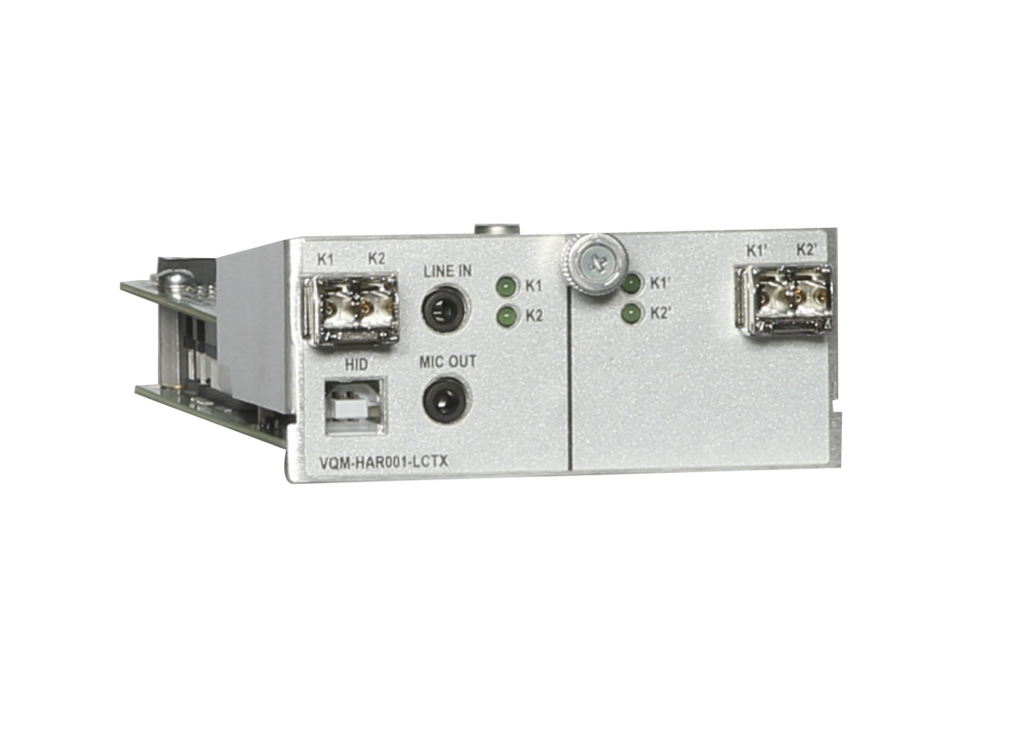

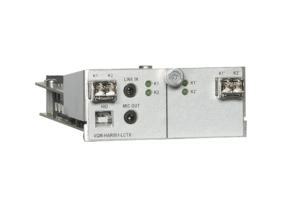

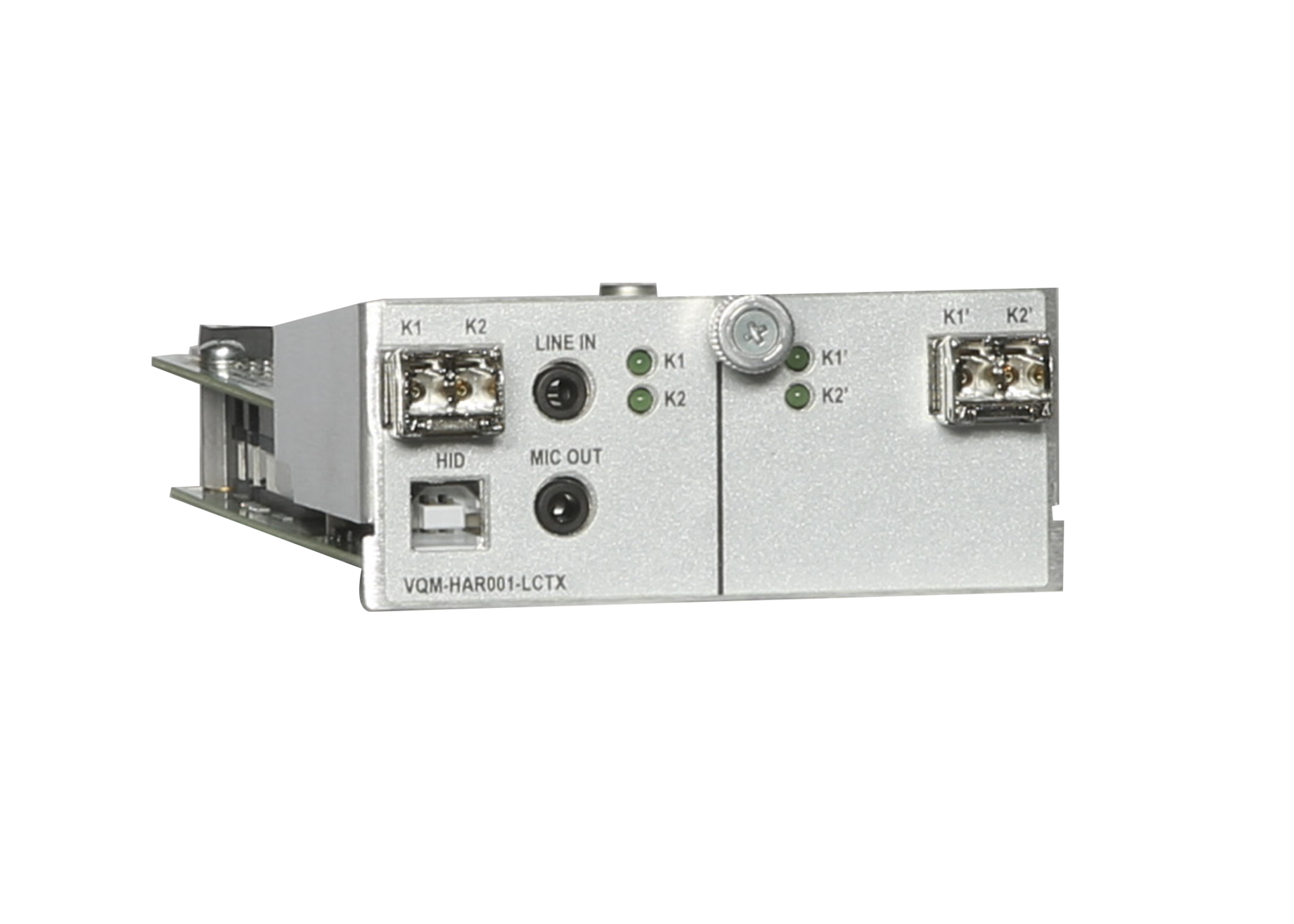

VQM-HAR001-LCTX Velocity Q-Series Audio & Peripheral Extender Transmitter Module, HID, Audio, Redundant Data Path, LC

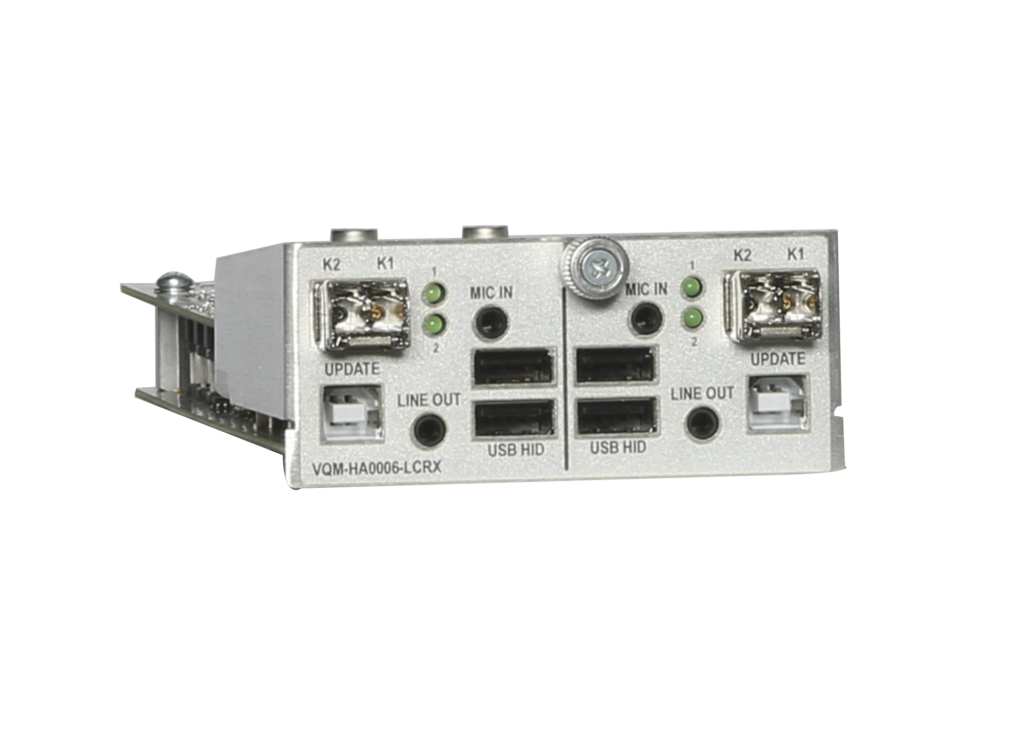

VQM-HA0006-LCRX Velocity Q-Series Audio & Peripheral Extender Receiver Module, Dual HID, Dual Unbalanced Audio, LC

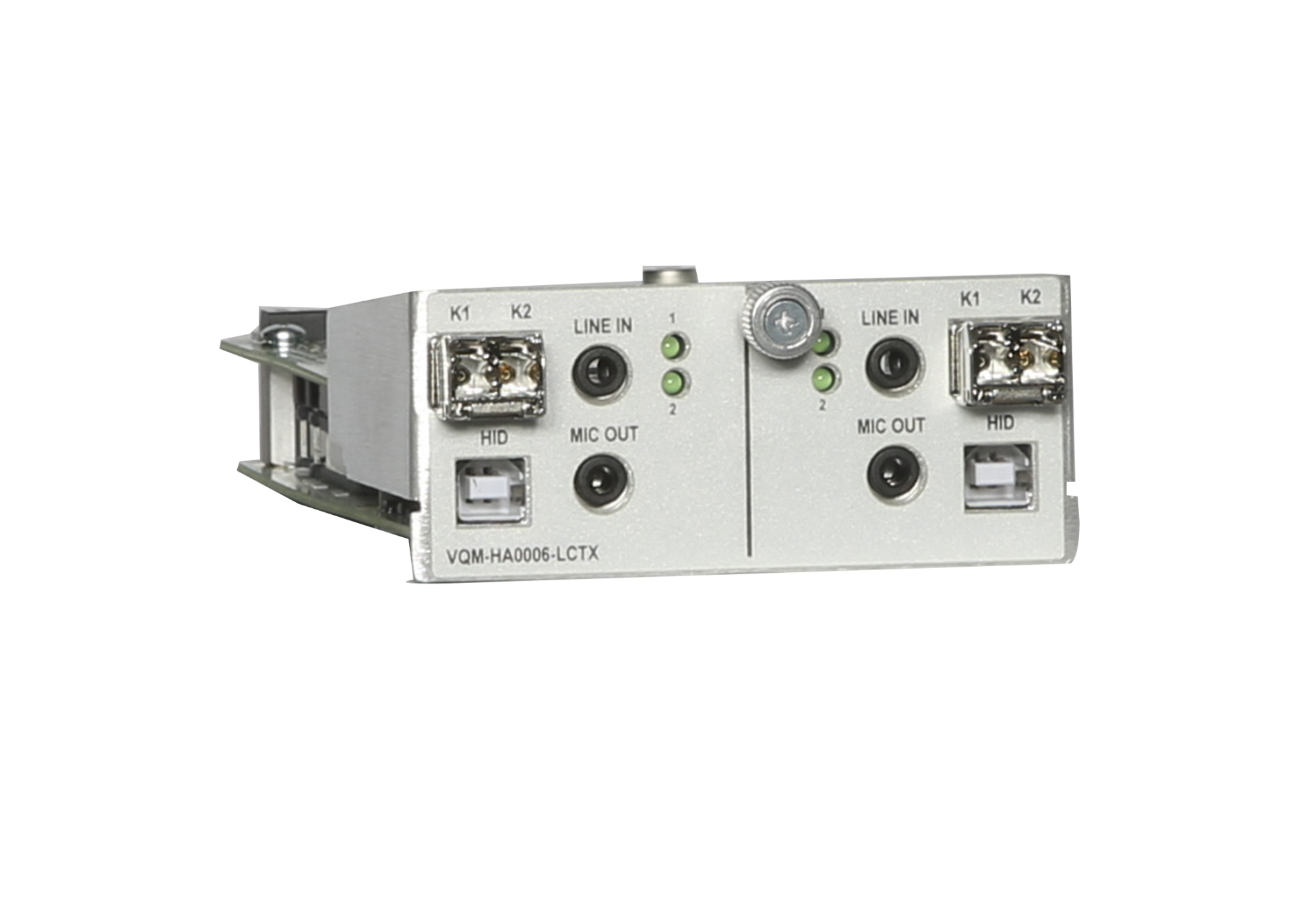

VQM-HA0006-LCTX Velocity Q-Series Audio & Peripheral Extender Transmitter Module, Dual HID, Dual Unbalanced Audio, LC

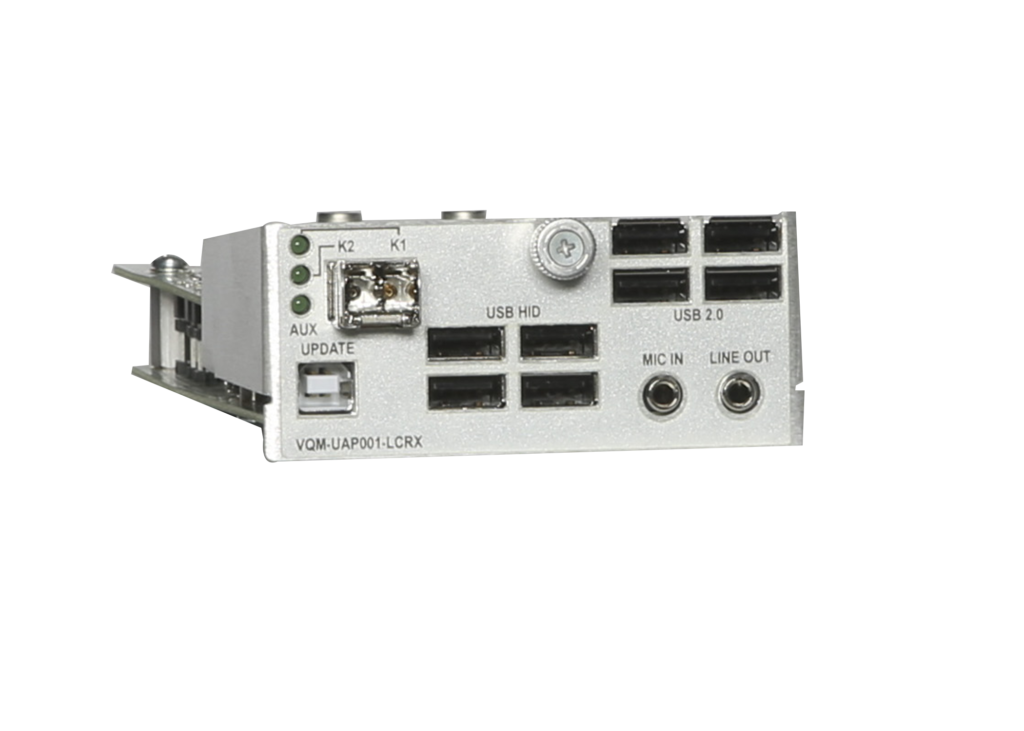

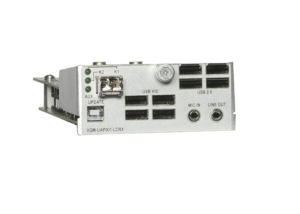

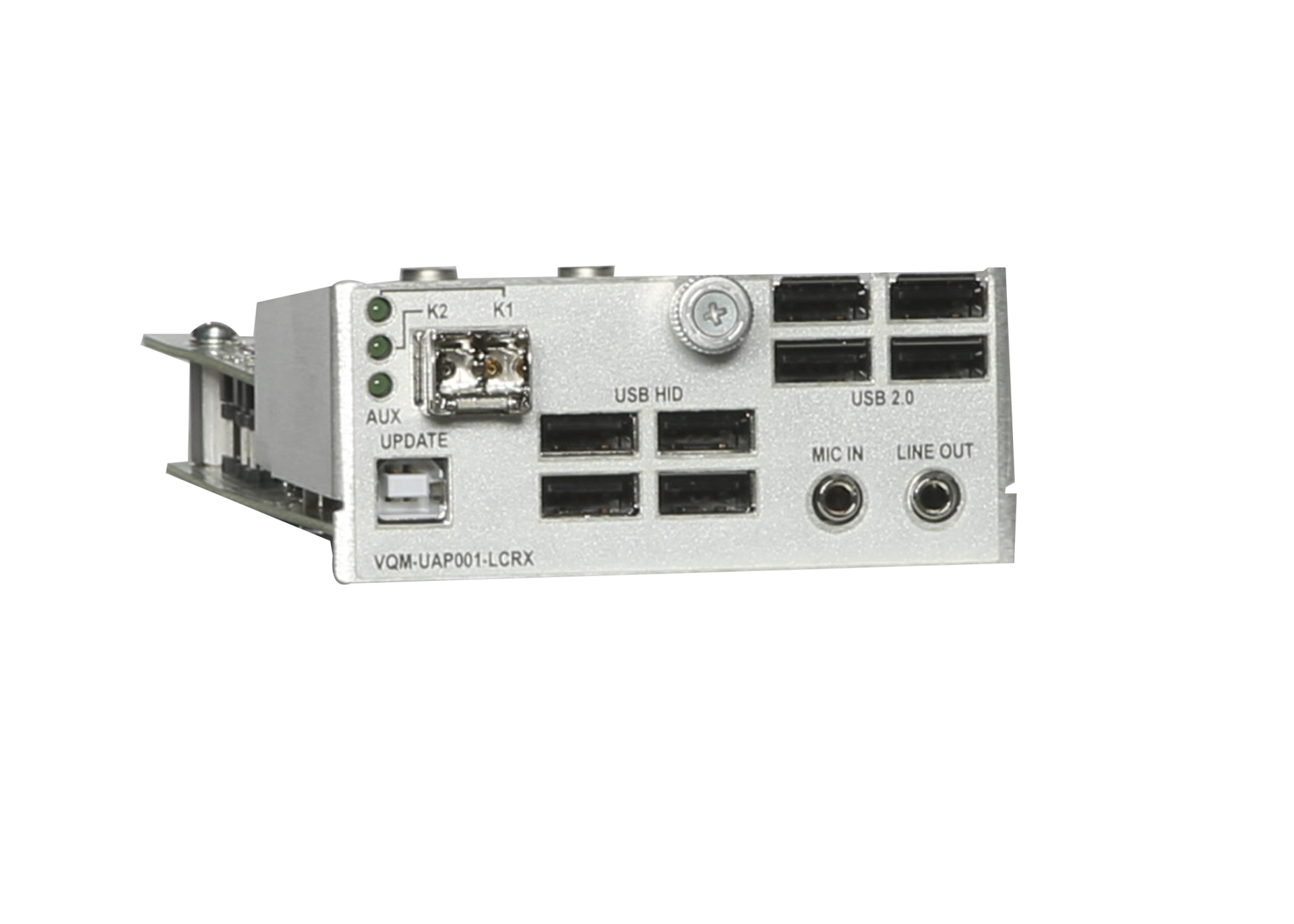

VQM-UAP001-LCRX Velocity Q-Series Audio & Peripheral Extender Receiver Module, USB 2.0, HID, Audio, PS/2, LC

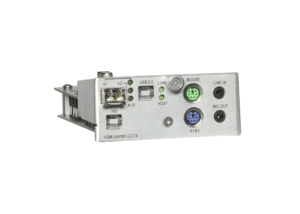

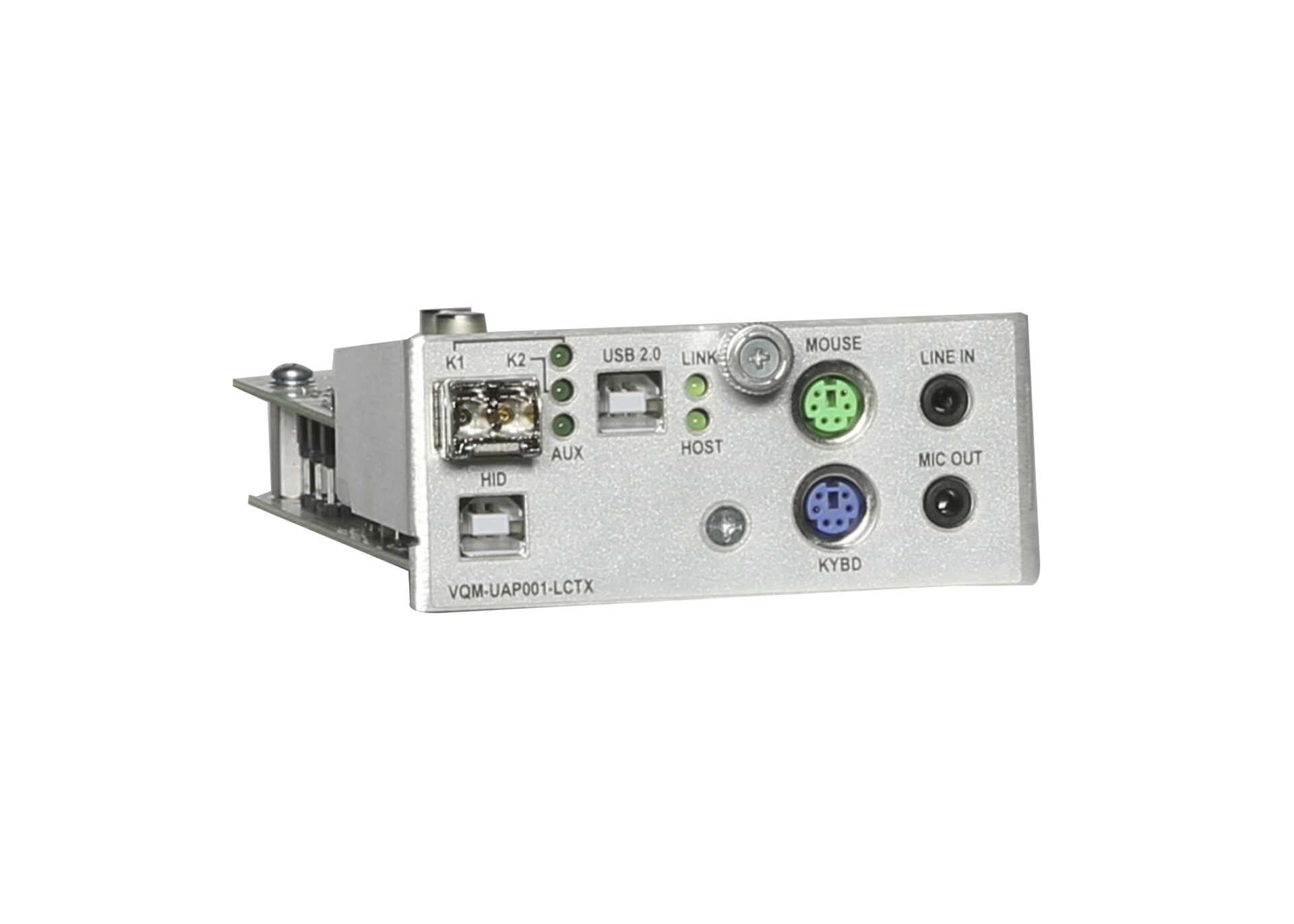

VQM-UAP001-LCTX Velocity Q-Series Audio & Peripheral Extender Transmitter Module, USB 2.0, HID, Audio, PS/2, LC

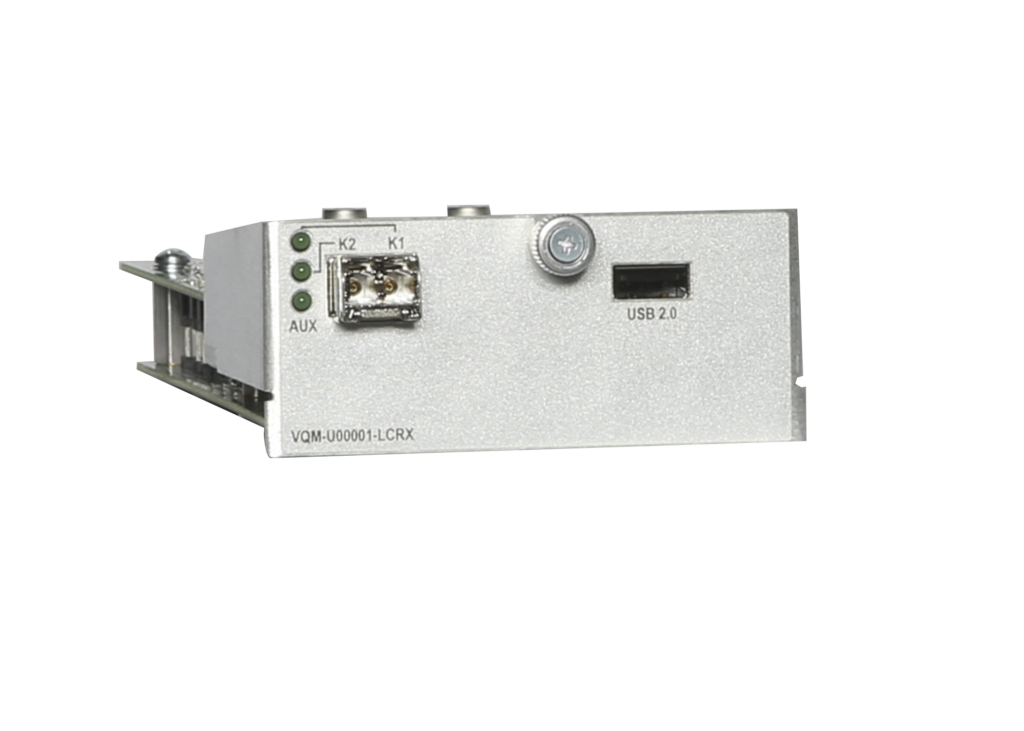

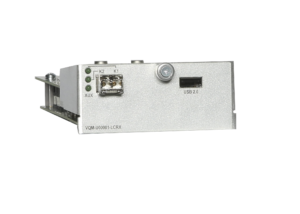

VQM-U00001-LCRX Velocity Q-Series Peripheral Extender Receiver Module, USB 2.0, Single Output Port, LC

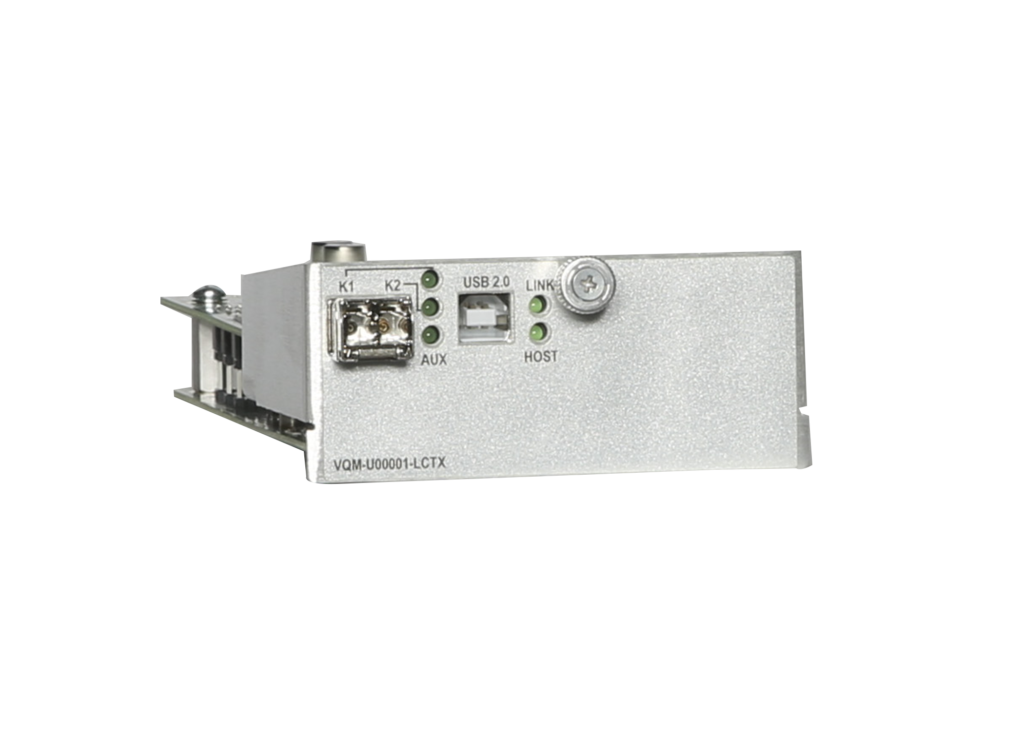

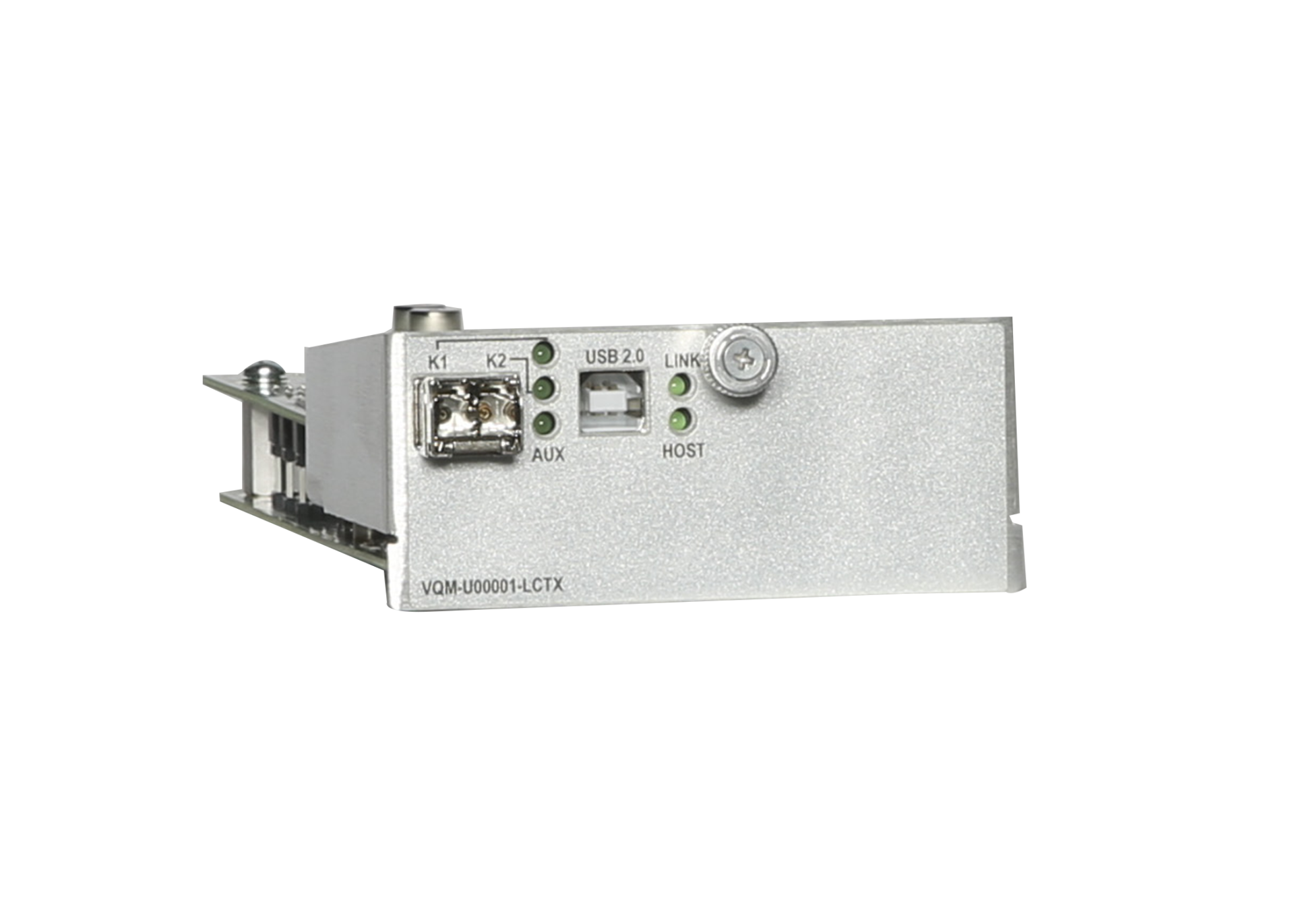

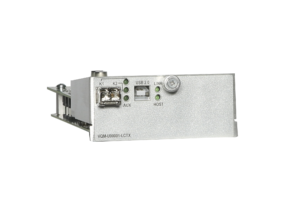

VQM-U00001-LCTX Velocity Q-Series Peripheral Extender Transmitter Module, USB 2.0, LC

VQM-U0R001-LCRX Velocity Q-Series Peripheral Extender Receiver Module, USB 2.0, Single Output Port, Redundant Data Path, LC

VQM-U0R001-LCTX Velocity Q-Series Peripheral Extender Transmitter Module, USB 2.0, Redundant Data Path, LC

VQM-U00002-LCRX Velocity Q-Series Peripheral Extender Receiver Module, Dual USB 2.0, Single Output Port for Each USB 2.0 , LC

VQM-U00002-LCTX Velocity Q-Series Peripheral Extender Transmitter Module, Dual USB 2.0, LC

VQM-U00008-LCRX Velocity Q-Series Peripheral Extender Receiver Module, Dual USB 2.0, Quad Output Ports for Each USB 2.0 , LC

VOP-M19 Velocity Q-Series Audio & Peripheral Single HID/USB 2.0/USB 3.0 (TX Only) Optics Option for TX or RX, Multi-Mode, Dual Fiber, 1000M

VQS-001300 1300 Chassis, Supports single module

VQS-002300 2300 Chassis, Supports two modules

VQS-004300 4300 Chassis, Supports four modules

VTS-Q04200 Q-4200 Chassis, two modules & T-Mod

USB-000S02-LCRX USB 2.0 Fiber Receiver, Single Mode, LC
