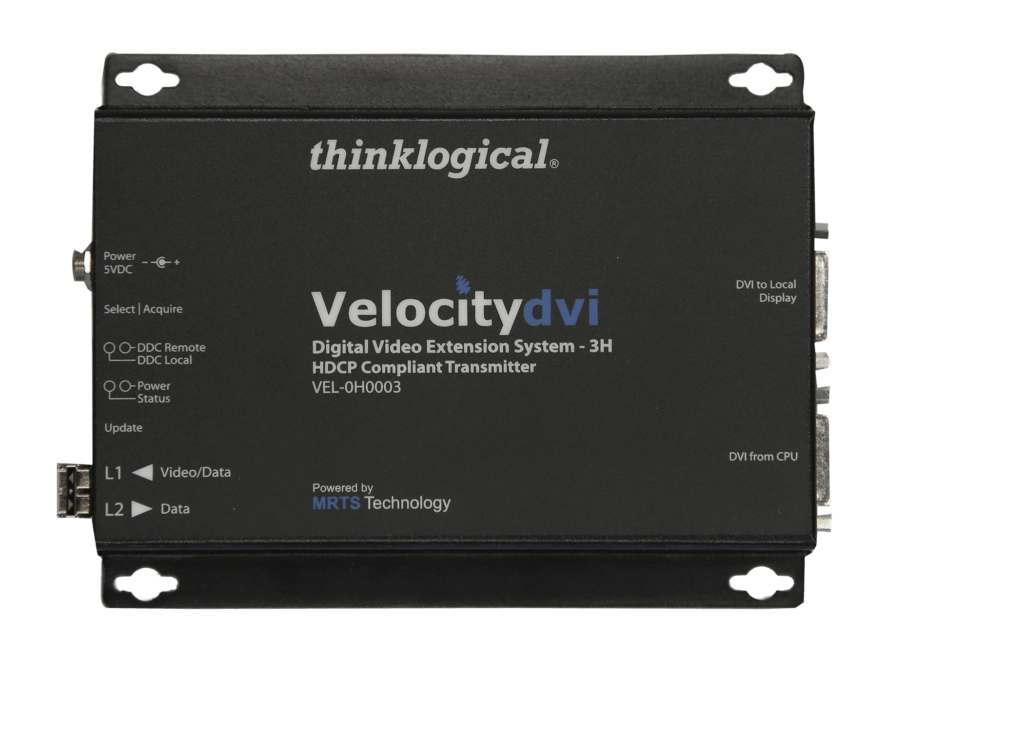

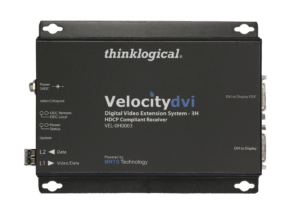

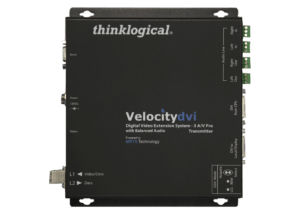

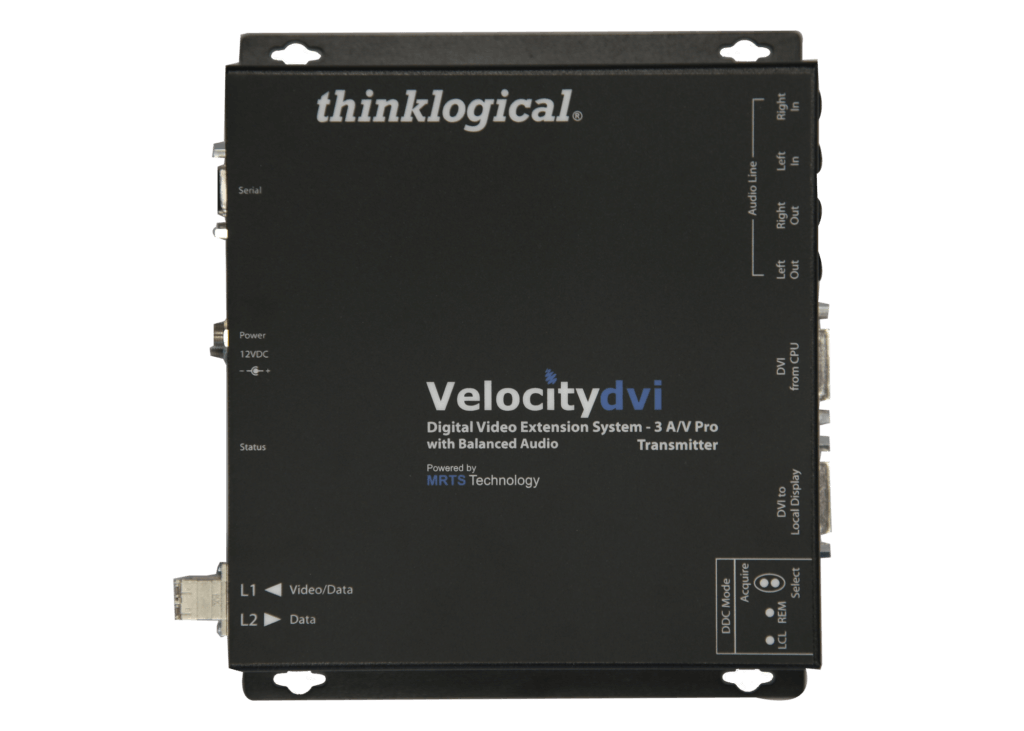

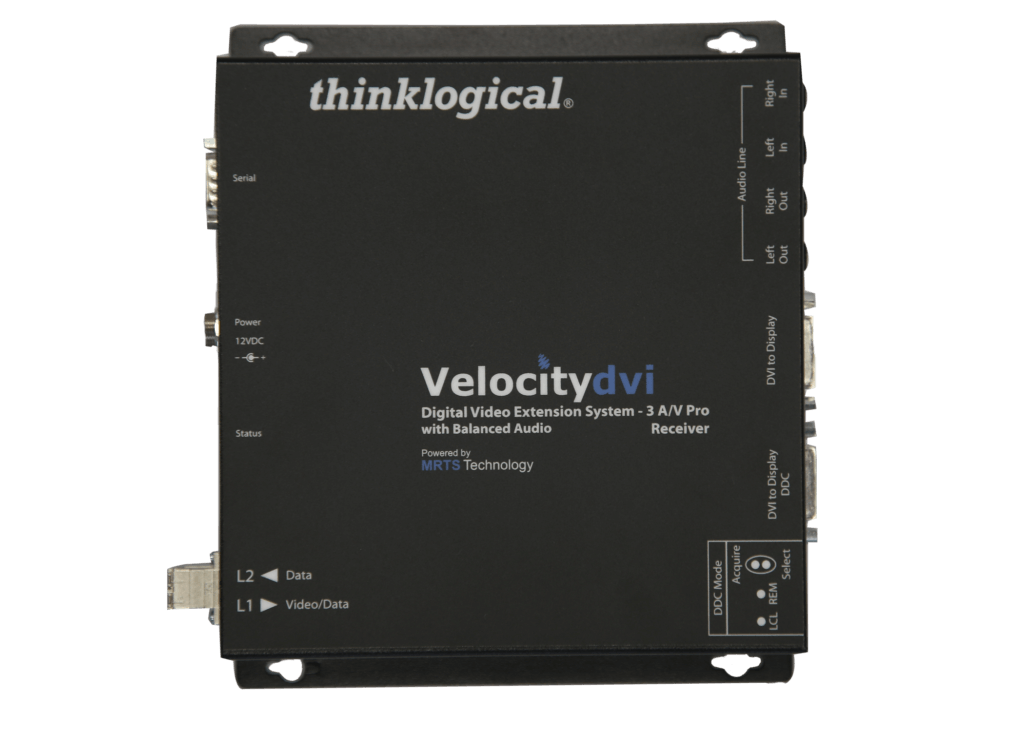

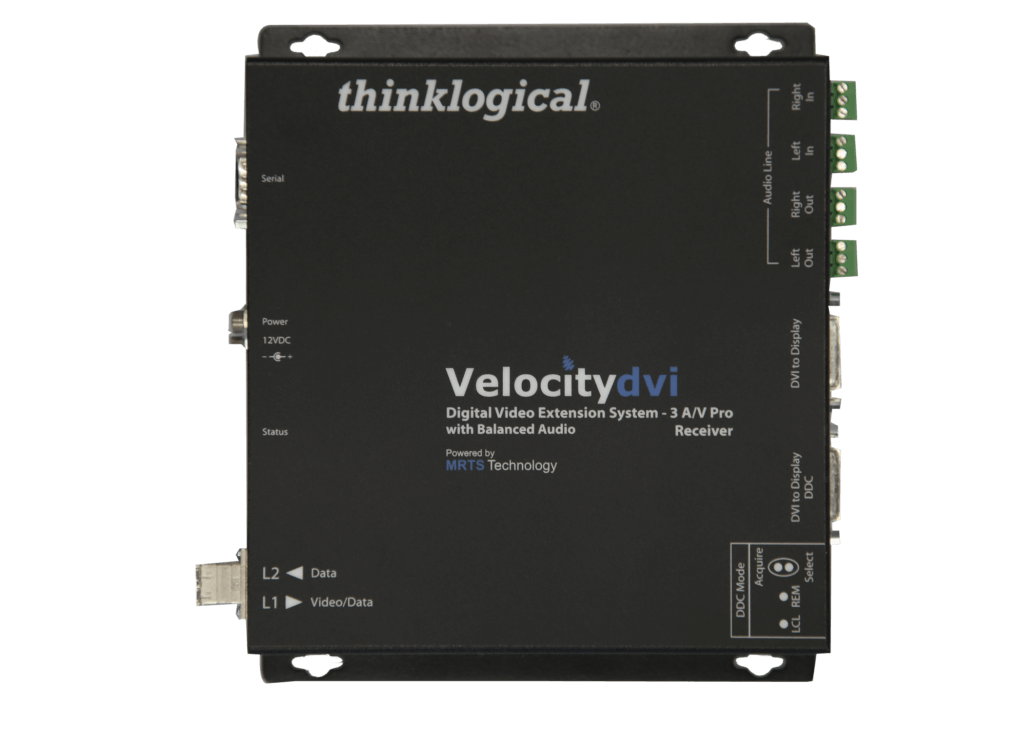

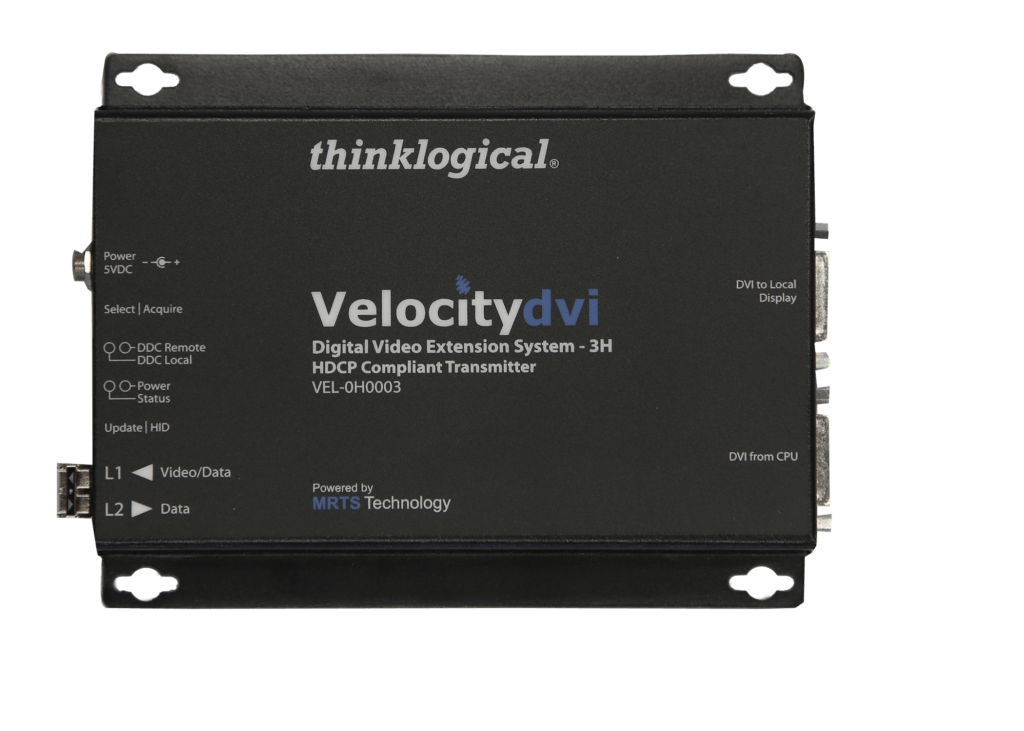

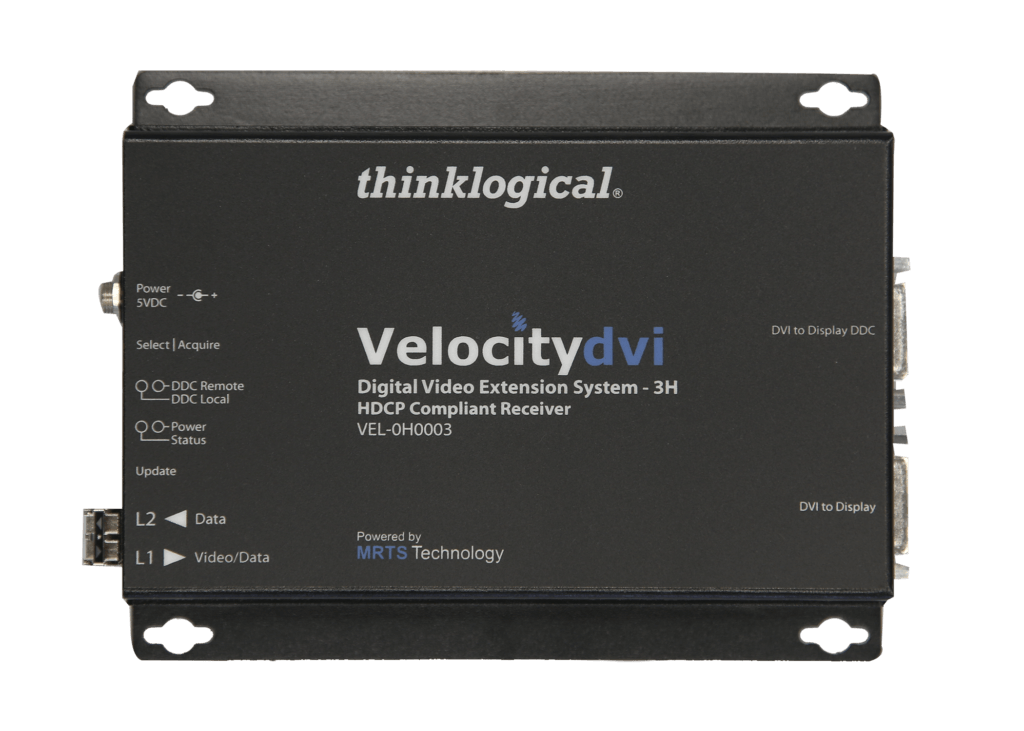

Velocity 3 DVI Video Extender

Specifications

• Video Resolution: DVI-D, all single-link DVI resolutions (maximum 165MHz pixel clock)
• Optical Cable: Two (2) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
• Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
• Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
• Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
• Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
• Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
• Compliance: Approvals for United States of America, Canada, and European Union
• Warranty: One year ∙ Extended warranties available for purchase
• Mounting Brackets (VQM): See Modular Chassis Specifications
• Mounting Brackets (VEL): Surface Mounting Brackets Included
• Power Consumption: 10 Watts
• Supply Voltage (VQM): Universal AC Power Supply, 100-240VAC, 47-63Hz
• Supply Voltage (VEL): +5V DC, 4A, AC/DC Adapter Universal Input 100-240VAC, 50/60Hz
• Weight (VQM): 0.50lb (0.23kg)
• Weight (VEL): 1.00lb (0.45kg)

Dimensions

• Rack Size (VQM): See Modular Chassis Specifications
• Rack Size (VEL): EIA 19” 3RU Rackmount for 12 Extenders, See RAC-000003 (not included)
• Height x Width x Depth (VQM): 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm)
• Height x Width x Depth (VEL): 1.13”(29.58mm) x 5.57”(141.43mm) w/mounting brackets x 7.42”(188.49mm)
• Tolerance: ± 0.039” (1.00mm)

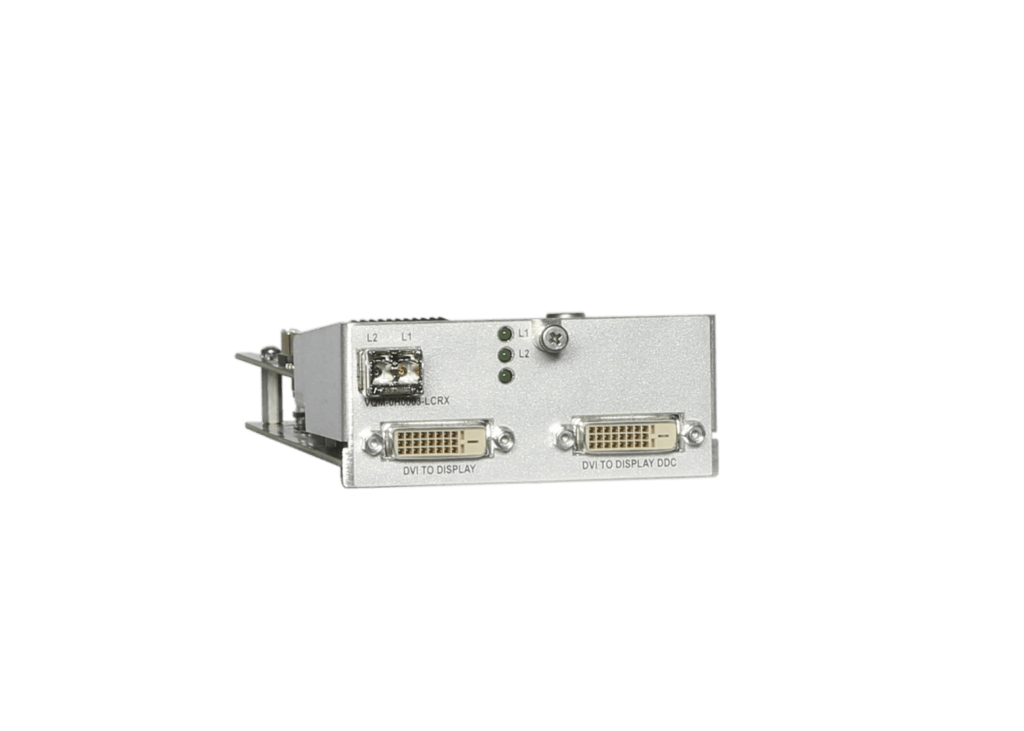

Connectors

• Video: DVI-D (2)
• Audio MIC/LINE (Configurable): 3.5mm Jack (2)
• RS-232 Serial Port (Configurable): RJ45 (1)
• 10/100 Network (Configurable): RJ45 (1)
• Software Updates (VQM): USB B (1) with Q-Series 2300, 4300 and T-Series Q-4200 Chassis
• Software Updates (VEL): Mini USB (1)
• Fiber Connectors (VQM): LC (1)
• Fiber Connectors (VEL): LC (1); Inquire with Thinklogical for Neutrik® Connectors

Cables Included

Transmitter:

• (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R) [For Fixed Extenders, for Extender Modules see Modular Chassis Specifications]
• (1) DVI-D Single-Link Male to Male, 2 Meters (CBL000009-002MR)
• Audio & Serial Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR); (1) DB9 Female RJ45 Modem (ADP-000025-R); (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)
• Audio & Network Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR); (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)

Receiver:

• (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R) [For Fixed Extenders, for Extender Modules see Modular Chassis Specifications]
• Audio & Serial Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR); (1) DB9 Male RJ45 Modem (ADP-000019-R)
• Audio & Network Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR)

Contact Thinklogical for additional specifications for redundant, separate data, separate audio and multipath extenders.
