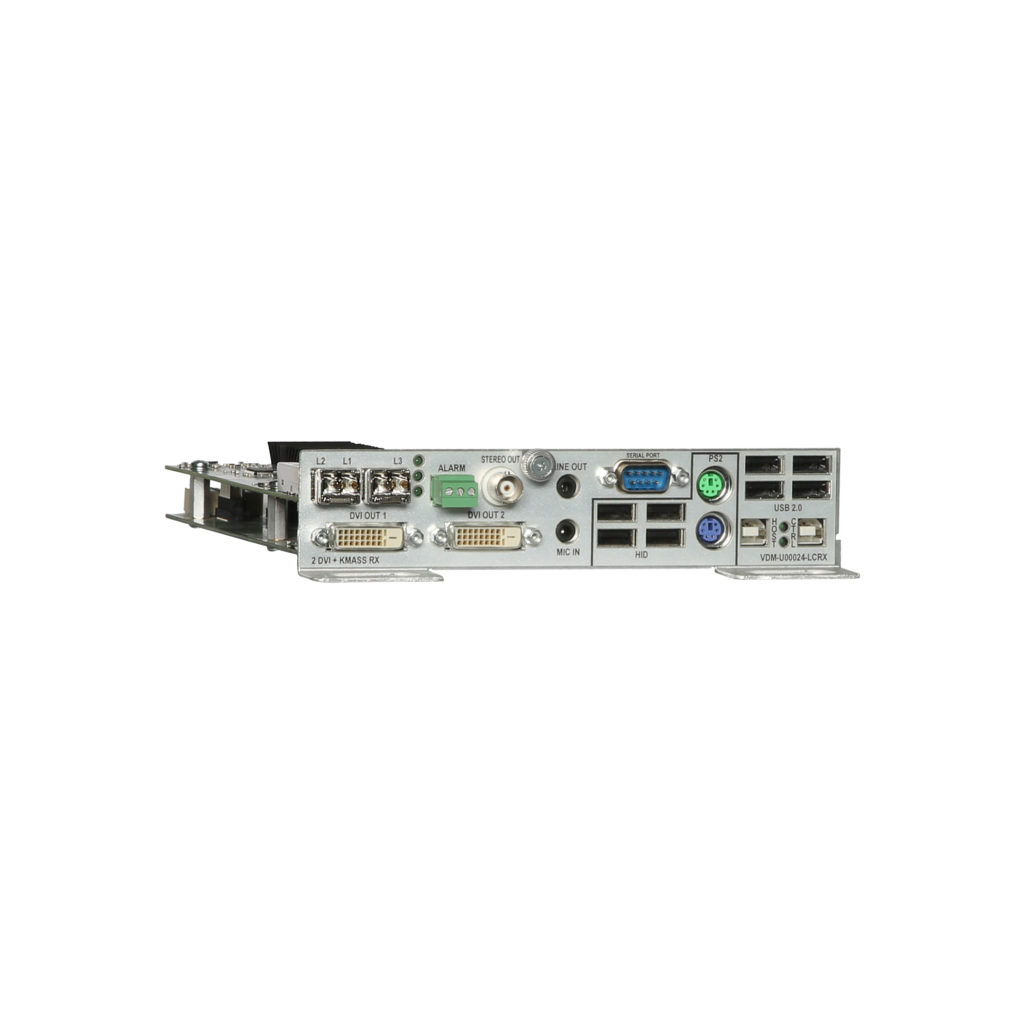

Velocity 8 KVM Extender

Specifications

• Video Resolution: DVI-D, all single-link and dual-link DVI resolutions (maximum 330MHz pixel clock)
• Optical Cable: Three (3) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
• Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
• Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
• Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
• Data Rate: Forward channels: 6.25Gbps; Return Channel: 2Gbps
• Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
• Compliance: Approvals for United States of America, Canada, and European Union
• Warranty: One year ∙ Extended warranties available for purchase
• Mounting Brackets: See Modular Chassis Specifications 19” Rack Mounting Brackets Included
• Power Consumption: 15 Watts 25 Watts
• Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz Universal AC Power Supply, 100-240VAC, 47-63Hz
• Weight: 1.00lb (0.45kg) 8.50lbs (3.86kg)

Dimensions

• Rack Size: See Modular Chassis Specifications EIA 19”
• Height x Width x Depth: 1.65” (41.91mm) x 7.41” (188.11mm) x 9.06” (230.15mm) 1RU: 1.72” (43.69mm) x 17.49” (444.25mm) x 14.94” (379.53mm)
• Tolerance: ± 0.039” (1.00mm) ± 0.039” (1.00mm)

Connectors

• Video: DVI-D (2) DVI-D (2)
• Audio MIC/LINE: 3.5mm Jack (2) 3.5mm Jack (2)
• RS-232 Serial Port: TX: DB9 Female (1); RX: DB9 Male (1) TX: DB9 Female (1); RX: DB9 Male (1)
• RS-422 Serial Port (Configurable): DB9 Female (1) DB9 Female (1)
• Stereo Emitter: 50Ω BNC (1) 50Ω BNC (1)
• PS/2 Keyboard/Mouse: Mini DIN 6 Female (2) Mini DIN 6 Female (2) + additional (2, TX only) for Local Keyboard/Mouse
• USB Local Keyboard/Mouse: TX: USB A (2)
• USB HID: TX: USB B (1); RX: USB A (4) TX: USB B (1); RX: USB A (4)
• USB 2.0 (480 Mbps, Configurable): TX: USB B (1); RX: USB A (4) TX: USB B (1); RX: USB A (4)
• FireWire 800 (Configurable): 9-Pin Male IEEE 1394b (1)
• Professional Audio (Configurable): AES3 (TRS), S/PDIF (RCA) or S/PDIF (TOSLINK) (1)
• 10/100 Network (Configurable): RJ45 (1)
• Software Updates: USB B (2) TX: USB B (3); RX: USB B (2)
• Alarm: Closed contact alarm, three position terminal block
• Fiber Connectors: LC (1) LC, SC or ST (1) [FireWire 800 (2)]

Cables Included

Transmitter:

• (1) AC Power Cable for Fixed Extenders (for Extender Modules see Modular Chassis Specifications)
• (1) DVI-D Dual-Link Male to Male, 2 Meters (CBL000023-002MR)
• (1) KMASS Cable Kit (KIT-000005-R)
• (2) 6 Pin Mini DIN Male to Male, 1.8 Meters (CBL000006-006FR) (1) DB9 Male to DB9 Female, 1.8 Meters (CBL000017-006FR)
• (1) BNC Male to BNC Male, 50Ω, 1.8 Meters (CBL000018-006FR) (2) USB A-B, 1.8 Meters (CBL000015-006FR)
• (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)
• USB 2.0 (480 Mbps): (1) USB A-B, 1.8 Meters (CBL000015-006FR) 10/100 Network: (1) CAT 5, 2 Meters (CBL000001-002MR)
• FireWire 800: (1) 9-Pin to 9-Pin 1394b, 1.8 Meters (CBL000101-006FR) & (1) 6-Pin to 9-Pin 1394b, 1.8 Meters (CBL000100-006FR)
• Professional Audio: (1) Optical TOSLINK, 1.8 Meters (CBL-000043-R), (1) Coaxial RCA, 1.8 Meters (CBL-000044-R)

Receiver:

• (1) AC Power Cable (For Fixed Extenders, for Extender Modules see Modular Chassis Specifications)
• FireWire 800: (1) 9-Pin to 9-Pin 1394b, 1.8 Meters (CBL000101-006FR) & (1) 6-Pin to 9-Pin 1394b, 1.8 Meters (CBL000100-006FR)
